Calculating the area of complex shapes is a fundamental skill in mathematics, engineering, architecture, and various scientific fields. Whether you’re designing a building, analyzing land plots, or solving advanced geometry problems, understanding how to find areas of irregular polygons, composite figures, and curved surfaces is essential.

This comprehensive guide will walk you through proven methods, practical formulas, and step-by-step techniques to master any complex area calculation challenge. By the end of this article, you’ll have the confidence and knowledge to tackle even the most intricate geometric problems.

Understanding Complex Shapes: Beyond Basic Geometry

Complex shapes differ from simple geometric figures like squares, circles, or triangles because they cannot be calculated using a single standard formula. These shapes typically fall into three main categories:

Irregular Polygons: Shapes with multiple sides of different lengths and angles that don’t follow standard patterns. Examples include land parcels, architectural floor plans, and natural formations.

Composite Figures: Shapes created by combining two or more basic geometric forms. These might include rectangles with semicircular extensions, triangular roofs on rectangular buildings, or circular sections cut from square pieces.

Curved Surfaces: Areas bounded by curves, including ellipses, parabolas, or custom curved boundaries that require specialized calculation methods.

Understanding these categories is crucial because each requires different approaches and techniques for accurate area calculation.

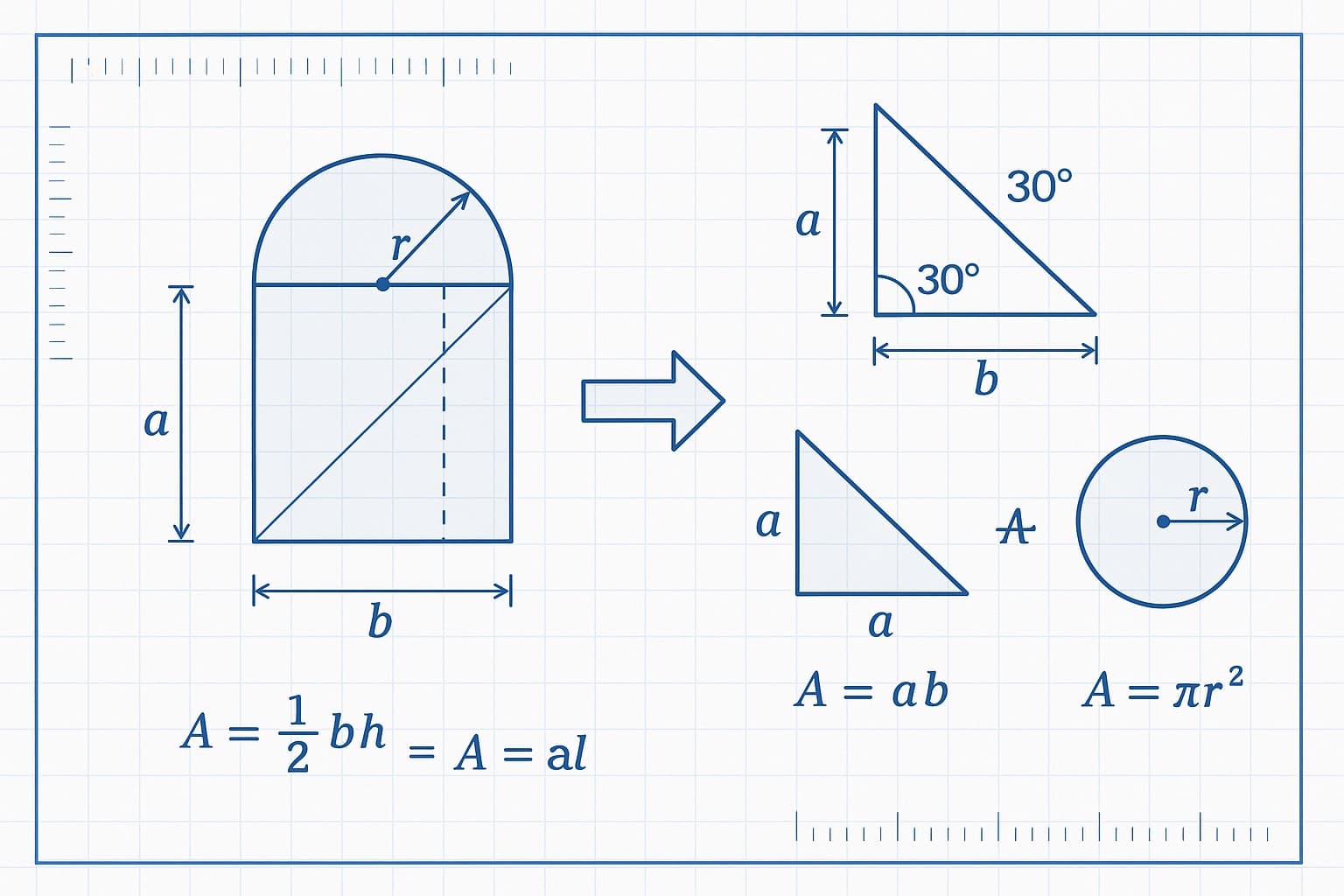

Method 1: Decomposition Technique for Composite Figures

The decomposition method is one of the most practical approaches for calculating complex areas. This technique involves breaking down a complex shape into smaller, recognizable geometric forms whose areas can be easily calculated.

Step-by-Step Process:

1. Identify Basic Shapes: Examine your complex figure and identify all the basic shapes it contains (rectangles, triangles, circles, semicircles, etc.).
2. Measure Dimensions: Carefully measure or identify the dimensions of each basic shape within the complex figure.
3. Calculate Individual Areas: Use standard formulas to find the area of each basic shape:
   • Rectangle: length × width
   • Triangle: ½ × base × height
   • Circle: π × radius²
   • Semicircle: ½ × π × radius²
4. Combine Results: Add all individual areas together to get the total area of the complex shape.

Practical Example: Consider an L-shaped garden plot. You can decompose this into two rectangles: one measuring 10m × 6m and another measuring 4m × 8m. The total area would be (10 × 6) + (4 × 8) = 60 + 32 = 92 square meters.

This method is particularly effective for architectural drawings, land surveying, and manufacturing applications where complex shapes are combinations of standard geometric forms.

Method 2: Triangulation for Irregular Polygons

Triangulation is a powerful technique for calculating the area of irregular polygons with multiple sides and varying angles. This method converts any polygon into a series of triangles, making calculation straightforward.

The Triangulation Process:

1. Create Triangles: Draw lines from one vertex to all non-adjacent vertices, dividing the polygon into triangles.
2. Measure Triangle Dimensions: For each triangle, measure the base and height, or use the three sides if you plan to apply Heron’s formula.
3. Calculate Triangle Areas: Use the formula ½ × base × height for each triangle, or apply Heron’s formula when you have all three sides.
4. Sum All Triangles: Add the areas of all triangles to get the total polygon area.

Heron’s Formula Application: When you have the lengths of all three sides of a triangle (a, b, c), you can use Heron’s formula:

• First, calculate the semi-perimeter: s = (a + b + c) ÷ 2
• Then, calculate the area: √[s(s-a)(s-b)(s-c)]

This method is particularly valuable in surveying, where GPS coordinates can provide precise measurements for irregular land parcels.

Method 3: Coordinate Geometry and the Shoelace Formula

For shapes defined by coordinate points, the Shoelace formula (also known as the surveyor’s formula) provides an elegant solution for area calculation.

The Shoelace Formula: For a polygon with vertices at coordinates (x₁,y₁), (x₂,y₂), …, (xₙ,yₙ), the area is:

Area = ½|∑(xᵢyᵢ₊₁ – xᵢ₊₁yᵢ)|

Step-by-Step Application:

1. List Coordinates: Arrange all vertex coordinates in order (clockwise or counterclockwise).
2. Apply the Formula: Multiply each x-coordinate by the y-coordinate of the next point, then subtract the product of each y-coordinate with the next x-coordinate.
3. Sum and Calculate: Add all positive products, subtract all negative products, take the absolute value, and divide by 2.

This method is extremely useful in GIS applications, computer graphics, and any situation where you have precise coordinate data for complex shapes.

Method 4: Integration for Curved Boundaries

When dealing with shapes bounded by curves, calculus integration becomes the most accurate method for area calculation.

Basic Integration Approach:

For a region bounded by a curve y = f(x) from x = a to x = b, the area is:

Area = ∫[a to b] f(x) dx

Practical Applications:

• Architectural Arches: Calculate areas under curved arches or domes
• Engineering Designs: Determine cross-sectional areas of curved components
• Scientific Analysis: Measure areas under experimental curves or data plots

Numerical Integration: When analytical integration is complex, numerical methods like the trapezoidal rule or Simpson’s rule provide excellent approximations:

• Trapezoidal Rule: Divides the area into trapezoids for approximation
• Simpson’s Rule: Uses parabolic segments for higher accuracy

Advanced Techniques and Software Solutions

Modern technology offers sophisticated tools for complex area calculations:

Computer-Aided Design (CAD) Software: Programs like AutoCAD, SolidWorks, and SketchUp can automatically calculate areas of complex shapes with high precision.

Geographic Information Systems (GIS): Tools like ArcGIS and QGIS excel at calculating areas of irregular geographical regions using satellite data and coordinate systems.

Programming Solutions: Languages like Python, MATLAB, and R offer libraries for geometric calculations and can handle large datasets of coordinate points efficiently.

Mobile Applications: Smartphone apps can use GPS coordinates to calculate land areas in real-time, making field measurements more accessible.

Practical Applications Across Industries

Understanding complex area calculations has numerous real-world applications:

Architecture and Construction: Calculating floor areas, roof surfaces, and material requirements for irregularly shaped buildings.

Agriculture and Landscaping: Determining planting areas, irrigation coverage, and property boundaries for farms and gardens.

Engineering and Manufacturing: Computing cross-sectional areas for structural analysis, material usage, and component design.

Real Estate and Surveying: Measuring property sizes, determining land values, and creating accurate boundary descriptions.

Environmental Science: Calculating watershed areas, forest coverage, and habitat sizes for conservation efforts.

Common Mistakes and How to Avoid Them

Even experienced professionals can make errors in complex area calculations. Here are the most common mistakes and prevention strategies:

Incorrect Unit Conversions: Always ensure all measurements use consistent units before calculating. Convert everything to the same unit system (metric or imperial) before beginning calculations.

Overlooking Shape Complexity: Failing to identify all components of a composite figure can lead to significant errors. Always sketch the shape and label all dimensions before calculating.

Precision Errors in Measurements: Small measurement errors can compound into large area discrepancies. Use precise measuring tools and double-check critical dimensions.

Formula Misapplication: Using the wrong formula for a specific shape type is common. Always verify that your chosen method matches the shape characteristics.

Sign Errors in Coordinate Calculations: When using the Shoelace formula, pay careful attention to positive and negative terms to avoid calculation errors.

Tips for Accuracy and Efficiency

To improve your complex area calculation skills:

Practice Visualization: Develop the ability to mentally decompose complex shapes into simpler components. This skill improves with practice and experience.

Use Multiple Methods: When possible, calculate the same area using different methods to verify your results. Consistent answers across methods increase confidence in accuracy.

Maintain Detailed Records: Document your calculation process, including sketches, measurements, and intermediate results. This documentation helps identify errors and enables others to verify your work.

Leverage Technology Appropriately: Use software tools for complex calculations, but understand the underlying principles to verify results and troubleshoot problems.

Build a Reference Library: Keep a collection of formulas, techniques, and solved examples for quick reference during future calculations.

Quality Assurance and Verification

Professional-level area calculations require systematic quality assurance:

Cross-Verification: Use multiple calculation methods to confirm results. If two different approaches yield similar answers, confidence in accuracy increases significantly.

Dimensional Analysis: Ensure your final answer has appropriate units (square meters, square feet, etc.) and reasonable magnitude for the given shape.

Peer Review: Have colleagues review complex calculations, especially for critical applications like construction or legal documentation.

Software Validation: When using computational tools, understand their limitations and validate results against known test cases.

Conclusion

Mastering complex shape area calculations requires understanding multiple techniques, from basic decomposition to advanced integration methods. The key to success lies in choosing the appropriate method for each specific situation and maintaining accuracy throughout the calculation process.

Whether you’re an architect designing innovative buildings, an engineer analyzing structural components, or a surveyor measuring irregular land parcels, these techniques provide the foundation for accurate and reliable area calculations.

Remember that practice and experience are essential for developing proficiency. Start with simpler composite shapes and gradually work toward more complex irregular polygons and curved surfaces. With time and dedication, you’ll develop the skills and confidence to tackle any complex area calculation challenge.

The investment in mastering these techniques pays dividends across numerous professional and academic applications, making you more effective and valuable in fields requiring geometric analysis and spatial reasoning.
